Mica Tape For Wrapping Around Busbar & EV Connector / Synthetic Mica Tape with Back-Glued
Mica tape for fire resistant busbar & extruded busbar
A soft bar or extruded bar with fire-resistant properties achieved by wrapping a fire resistant layer with mica tape properties achieved by wrapping a fire resistant layer with mica tape.

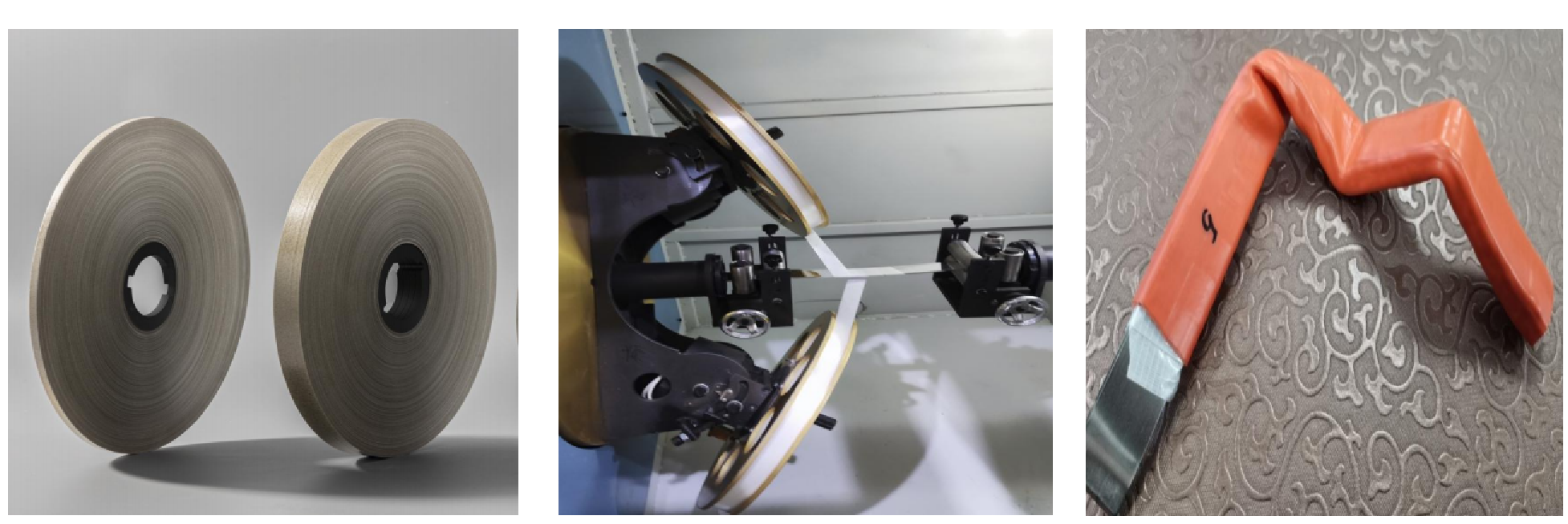

Mainly used as a fire resistant insulation layer for EV fireproof copper bars, it can be automatically around conductors through a double-layer pressure 50% wrapping process, with good consistency and high efficiency, can meet the following testing requirements: Condition: Flame burn at 950 ± 50 ℃ for 10 minutes, refer to ISO19642-2 for the following tests:
(1) Insulation resistance: Loading 1000V DC voltage for 60 seconds, insulation resistance ≥ 500M Ω
(2) Voltage resistance: Loading 5000V DC voltage for 60 seconds, leaked current<2mA
TDS
| synthetic mica tape (back-glued) |
| P-GF452BIM |
| Composition | 3in1 back glued |
| back-glued + glass fiber cloth + mica paper + PET |
| Property | Description | Unit |
| Color | Golden | / |
| Thickness | 0.15±0.02 | mm |
| Weight | 230±15 | g/m² |
| Density | 1.5±0,1 | g/cm³ |
| Tensile Strength | ≥100 | N/10mm |
| Dielectric Strenght | ≥10 | Mv/mm |
| Resistivity | ≥1.0*10^10 | Ω·m |
| Fire Resistance | 950-1000 | ℃ |
Synthetic mica is prepared by artificial synthesis using chemical methods to simulate the formation process of natural mica. It has a melting point of 1375 ℃ and has a higher temperature resistance level due to the use of - F instead of - OH. It is usually used as an insulation material at flame temperatures ranging from 950 ℃ to 1000 ℃.
According to different reinforcement methods, it can be divided into single-sided, double-sided, and three in one structures
Single sided synthetic mica is composed of fiber glass+mica
Double sided synthetic mica is composed of fiber glass+mica+fiber glass
Three in one synthetic mica is composed of film+mica+fiber glass.
Synthetic mica has excellent high-temperature insulation and fire resistance properties, and is usually used in tape or sheet shape as a fireproof and high-temperature insulation material in NCM lithium battery systems. According to application, PE/PET/PI materials are usually selected as the film for 3in1 mica products.
YT MICA fully implement the ISO 9001-2015 quality system operation,as a stan- dardization of internal management,strengthen the system building an important measure.A strict quality control system has been established,from raw materials, processes, finished products inspection,to ensure that every link in the production process is strictly in accordance with the standards for testing.
YT Mica has equipped with various fire-resistant testing devices and can assist customers in developing fire-resistant cable products according to different standards of various countries, providing one-stop solution service.
1. According to different requirements, we have compiled a total of 64 testing items for mica products, including physical properties, electrical properties, thermal properties, aging properties, and flame retardant properties, which basically cover all the requirements for mica performance testing;
2. At present, YT MICA is capable to detect 50 items of the testings and provide theoretical support quickly for different application scenarios of mica products.
Yitian Mica has obtained 5 invention patents, 21 practical patents, 20 software registration rights, and 3 trademarks. More intellectual property rights has been applied for verification.
YTMICA 5 invention patents:
a mica insulation material for battery cells and its processing & application.
a squeeze-resistant fireproof mica tape for power batteries and its processing & application.
high-temperature resistant mica tape & mica thermal insulation parts and their production methods.
a processing method for fire-resistant mica tape.
a fire-resistant insulation tape for optical cables.
System certifications obtained:
ISO9001 Quality Management System Certificate
ISO14001 Environmental Management System Certificate
ISO45001 Certificate of Occupational Health&Safety Management
IATF 16949 Quality Management System certificate
SA8000 Social Responsibility Management System Certificate
YT Mica has a dedicated R&D department working on innovations and the development of your projects. It is our longstanding experience with processing natural mica that allows us to provide tailor-made solutions for our end customers. Our product development and application engineering specialists will be in close cooperation with our customers to identify their needs and meet their specific requirements. If we don't have an immediate solution for you, our R&D department will work with you to develop and deliver the best possible solution that will meet your needs.
We have invested and developed expertise in machining, drilling, cutting, sawing and punching, thermal pressing/stamping our products to provide the best solutions to our customers. From our home made mica sheets we can manufacture pieces according to your technical specifications.
Know more about YT Mica at www.ncnc.cn
